Manufacturers of Chlorination Equipment and related Products
Residual Chlorine Analyzers
Does not rely on sample and hold methods!
Simple calibration and maintenance!
Allows for rapid process control!
Analyzers and parts are stocked for immediate shipment!

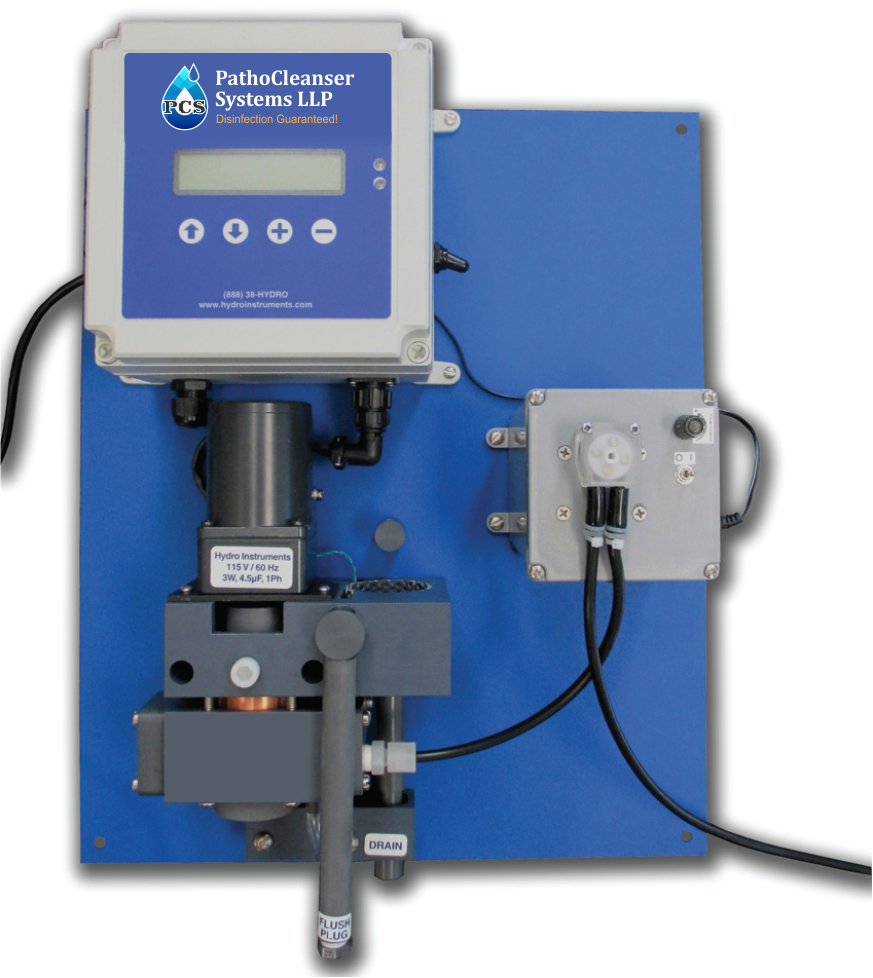

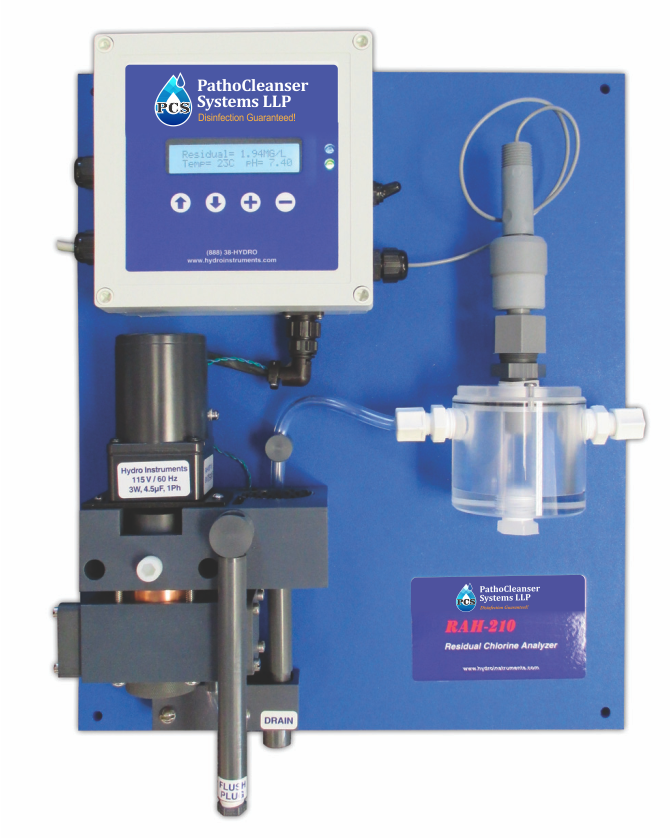

Series RAH-210
Amperometric residual analyzer
Available range: 0 –.1 to 0 – 20 ppm
Free Chlorine, Total Chlorine, Chlorine Dioxide, Bromine, and Iodine
Continuous sensor cleaning mechanism
Electrodes in direct contact with the sample water
Available with a gravity driven reagent feeder, reagent metering pump or with pH probe for automatic compensation
Series RPH-250
Amperometric Probe-Style Analyzer for Free Chlorine, Total Chlorine, or Chlorine Dioxide
Transparent bubble trap gravity style flow cell
Available range:
up to 200 ppm Free Chlorine
up to 20 ppm Total Chlorine
Available up to 1,500 ppm range for free chlorine with sample water dilution system
pH probe can be included for independent monitoring or for automatic compensation when measuring free chlorine
Standard Features on Both Models Include:
Modbus Communication
Automatic pH compensation software
Continuous measurement and rapid response
Continuous temperature monitoring and compensation
4 selectable isolated 4-20mA outputs (Residual, pH, Temperature or Control)
4 Alarm relays
Complete PID control program
Adjustable measurement range
2 line x 20 character LCD display

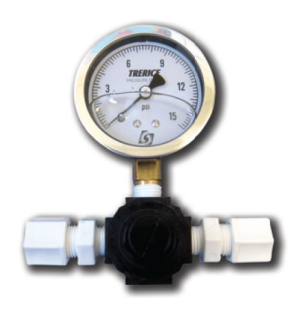

PRV and Pressure Gauge for a PCSLLP Residual Analyzer
