Manufacturers of Chlorination Equipment and related Products
Automatic Valves
State-of-the-art microprocessor technology, highest quality materials, precision machining and a minimal number of moving parts all combine to make the PCSLLP Automatic Valves extremely reliable over long periods of continuous operation.
OV-110 and OV-1000 Omni Valve
The most versatile valve on the market!
Control Modes -
Manual
Proportional (Flow Pacing)
Set Point (Residual or ORP)
Compound Loop (PID)
Dual Input Feed Forward
Step Feed Modbus RS-485 digital communication
Three analog inputs –
Flow
Residual
Remote Dosage
Both Models Provide:
Automatic feed of Chlorine gas, Sulfur Dioxide gas, Ammonia gas, Carbon Dioxide gas, Sodium Hypochlorite and other liquid chemicals.
Linear drive design eliminates rotary motion, meaning minimal parts wear.
Contact alarm output and 4-20 mA (2) outputs standard.
Ten point linearization process for accurate feed control.
2 line x 20 character display.
Capacities up to 200 Kg/h chlorine gas or 75 LPM Liquid Chemical Feed.
Excellent accuracy and repeatability.
PCSLLP Gas Chlorination System with an OV-110 Omni Valve
We Build Custom Wall Panels!

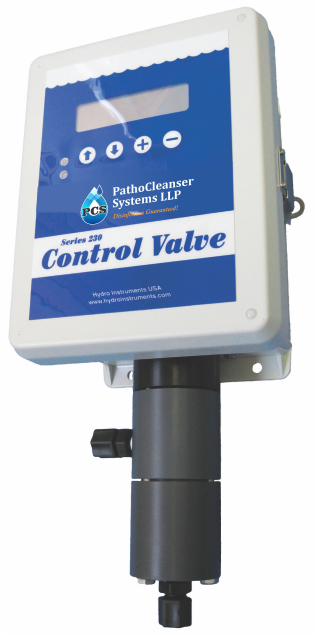

CV-230 Control Valve Compact Design!
Simple Proportional Program!
CV-230 Control Modes - Manual and Automatic (Proportional / Flow Pacing)
